Single column lifts

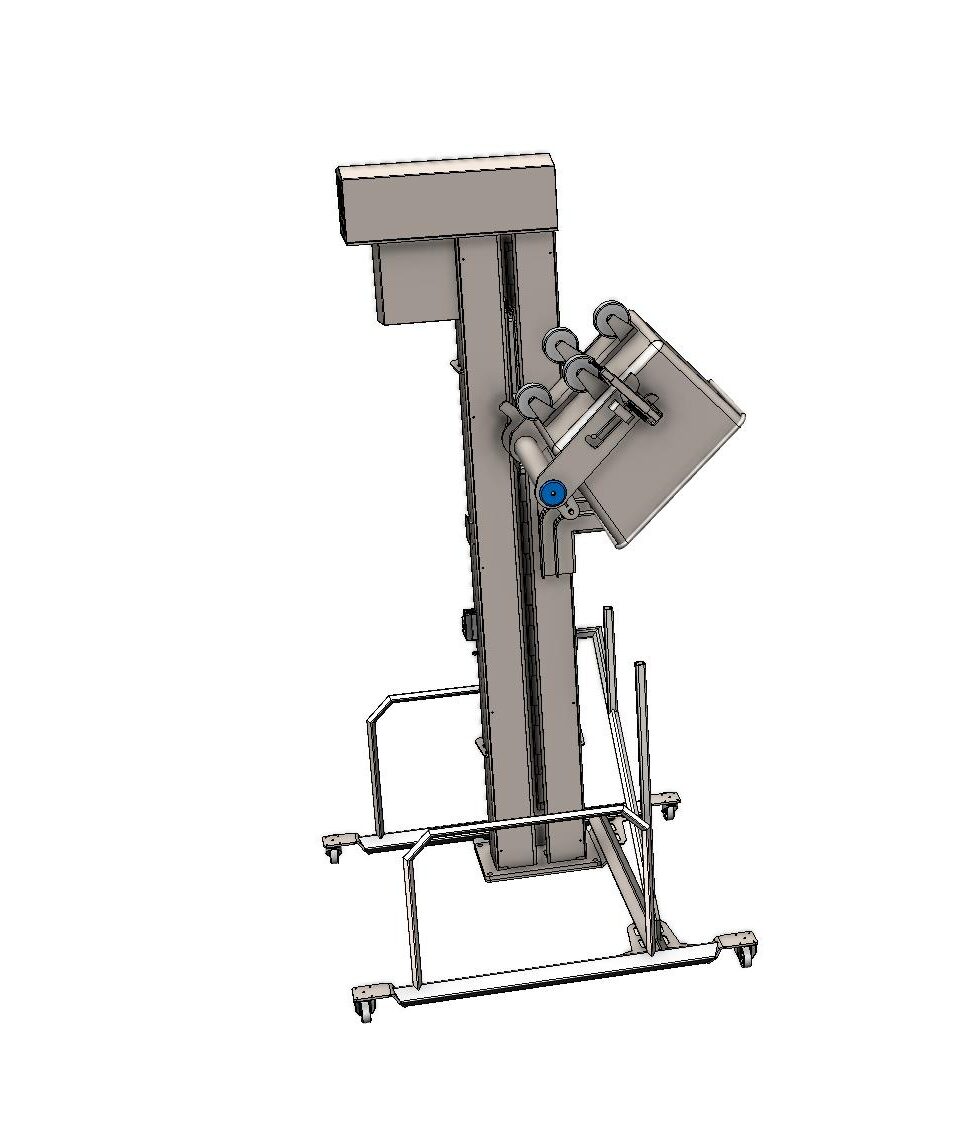

Single Column Lift 350 kg — Safe and Precise Lifting of EU Bins
Carnova's single column lift is engineered to lift and tip 200 and 300-litre EU bins with a maximum capacity of **350 kg** — safely, efficiently and without manual handling.
Built in stainless steel AISI 304 and certified for food production environments, it is a reliable choice for the fish processing, meat, dairy and food manufacturing industries.
The compact, vertical column design with an enclosed column body gives precise control over the tipping process and fits into even the tightest production spaces.
Tipping angle and height are individually adjustable, allowing direct integration into your existing processing line.
Compatible containers | 200 and 300 L EU bins (standard Euro bins)
Technical Specifications
- Lifting speed: Max. 5 m/min.
- Motor: 0.75 kW
- Voltage: 400 V – 50 Hz
- Construction material: Stainless steel AISI 304
- Tipping angle: 30°–55° (adjustable)
- Tipping height (short column) | 1,410–2,250 mm
Tipping height (long column) | 2,250–5,000 mm - Anti-fall protection: Mechanical, activates on chain failure
- Certification: CE-approved
Specifications
Single column lifts
| Dimensions | 1250 × 900 × 1500-5000 cm |
|---|
